How to stop salt efflorescence on external rendered wall

By
Joao Franco
26
Feb
2024

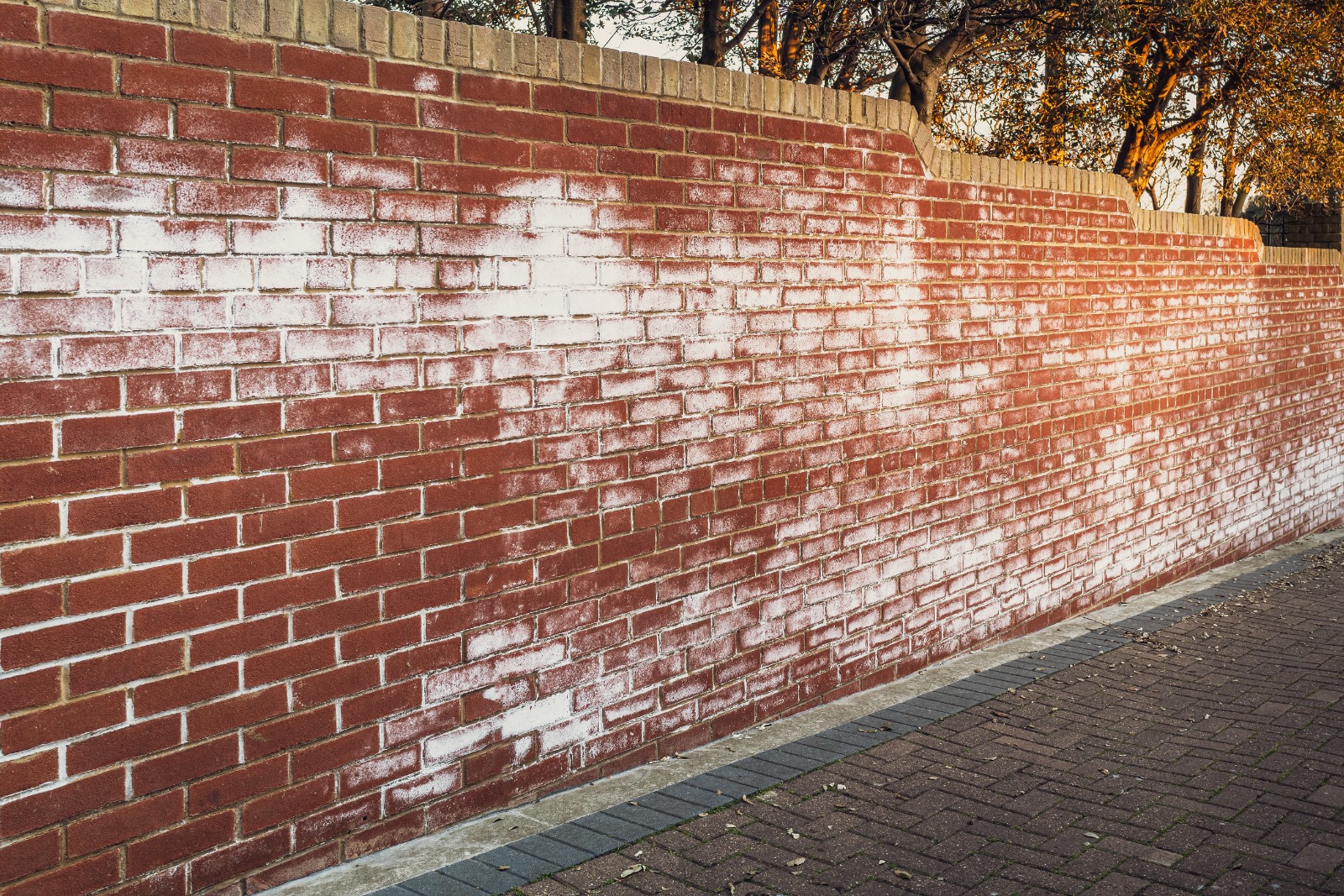

Efflorescence has been a major problem for many years on the surface of Australian buildings and most coastal zone structures. Efflorescence is the crystalline deposit of salts that initially produce a white thin film on the surface of masonry or plaster. It often occurs on masonry façades, and depending on its intensity, changes the colour impression and appreciation of the facade as a whole (Harold & Timo, 2004).

The effect of salt efflorescence on masonry structures is produced by rising of saline solution. The main chemical reagents, responsible for causing efflorescence on rendering mortar are chloride ion (Cl- ) and sulphate ion (SO4 2-).

Water from rain or garden sprinklers enters through the porous material and disperses the salts in the mineral components. Alternatively, if there is no water barrier at the base of the wall, such as paint or membranes, the water can be sucked up into the wall and rendering by osmosis. The salt can be in powder or crystalline form which is flaky. It is impossible to eliminate it completely, but specific treatments can help prevent it.
Keywords: Building, salinity, masonry wall, rendering, efflorescence, management

• Step 1
Scrub the wall with detergent and a strong brush or a pressure washer to remove all traces of surface efflorescence. And then rinse thoroughly with fresh water. Do not do this on a rainy day or if rain is in the forecast. Allow the wall to dry completely inside and out after you wash it.

• Step 2
Scrub the dry wall with a wire brush to remove as much of the paint as you can. Some electric drills and angle grinders have wire brush attachments, which may make it easier to do this. If there is efflorescence, your paint is not waterproofing the wall.

• Step 3
Patch the rendering with a render mix if it has flaked or peeled off using a trowel to smooth it. Alternatively, fill in small cracks and holes with acrylic or silicone sealant. If it is badly damaged you may have to use a chisel and hammer to remove portions, and re-apply them. The object is to make the rendering impermeable to water.

• Step 4
Apply muriatic acid to be sure you are getting rid of as much efflorescence as possible inside the porous rendering and the wall beneath it. Follow the manufacturer's recommendations on how to dilute the acid. Spray it onto the wall, taking care to use protective goggles, gloves, boots and clothing. Rinse thoroughly with water containing baking soda to neutralize the acid, or it will create more efflorescence. Allow to dry for a few days.

• Step 5
Apply a primer or sealant especially designed to help prevent efflorescence. Use a product that is best suited to your local weather conditions. Some of these are tinted, but if you want the wall to be coloured, you will probably have to paint over the sealant.

References:

Influence of Salt Efflorescence on rendering mortar of brick masonry walls. M. R. Karim1 , M. H. Islam*2 and S. Y. Morshed3. 3rd International Conference on Civil Engineering for Sustainable Development (ICCESD 2016), 12~14 February 2016, KUET, Khulna, Bangladesh (ISBN: 978-984-34-0265-3)
http://www.aldonchem.com/popup-ab-efflorescence.htm
http://www.masonryinstitute.org/pdf/612.pdf
http://www.masonryinstitute.org/pdf/612.pdf
